Low Energy Consumption HVM 3700 Vertical Mill Supplies A Variety Of Slag Grinding Mill
Description
HVM large vertical mill is a system solution integrating crushing, drying, grinding, powder sorting and conveying
Focus on three major fields of non-metallic ores, coal powder and slag milling
Vertical ore mill suitable for non-metallic ore grinding, including limestone powder, gypsum, etc. for desulfurization in power plants.
Vertical coal mill for the preparation of pulverized coal in metallurgy, electric power and cement industries;
Ultrafine vertical mill suitable for desulfurization of industrial waste gas and comprehensive utilization of waste residue;
Vertical raw mills for cement production.
【Product performance advantage】
1. Low investment cost
Because it integrates crushing, drying, grinding, and grading and conveying, the system is simple and the layout is compact.
2. Low operating cost
(1) High efficiency: The grinding roller directly crushes and grinds the material on the grinding disc, and the energy consumption is low. Compared with the ball milling system, the energy consumption is saved by about 40% to 50%.
(2) Less wear: The grinding roller does not directly contact the grinding disc during work, and the grinding roller and the lining plate are made of high-quality materials, so the service life is long and the wear is less.
Technical Data
| Model | HVM2500 | HVM2800 | HVM3400 | HVM3700 | HVM4200 | HVM4500 | HVM4800 | HVM5100 | HVM5600 |
| Grinding Table Median Diameter(mm) | 2500 | 2800 | 3400 | 3700 | 4200 | 4500 | 4800 | 5100 | 5600 |
| Capacity(t/h) | 23-26 | 50-60 | 70-83 | 90-110 | 110-140 | 130-150 | 150-180 | 180-200 | 200-220 |
| Raw Material Moisture | ＜15% |
| Product Specific Surface Area | ≥420㎡/kg |
| Product Moistrue | ≤1% |
| Main Motor Power(kW) | 900 | 1800 | 2500 | 3350 | 3800 | 4500 | 5300 | 6150 | 6450/6700 |
| Illustrate | Re:Mining slag bond index≤25kWh/t,Steel slag bond index≤30kWh/t,The output will decrease by 30%-40% when grinding steel slag micro power |
【After-sales service of products】
We have a long-term service in the production line, good technology, responsible after-sales service team. All members have more than 5 years of experience in the industry, and can provide customers with timely, efficient, comprehensive and scientific after-sales service. It can provide customers with the whole process of after-sales service from engineering construction, production line equipment installation, production line debugging until the production line reaches the standard and production capacity, solves various incurable diseases encountered by customers, and provides thoughtful, meticulous and perfect after-sales service.
From planning site to design drawings, from technical training to installation and commissioning; production lines ranging from tens of millions to tiny gears, no matter where you are, just a phone call or an email, within 24 hours, you will be Will get our response and help.
Taking service as the core, tailoring high-quality products for you, providing pre-sale, in-sale and after-sale services, is our tenet for more than ten years.
Product Tags:
|
|

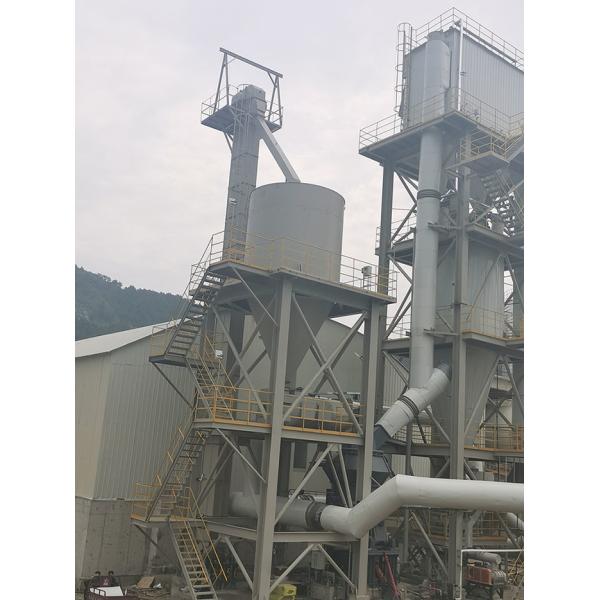

OEM Vertical Barite Slag Grinding Mill System HVM 3700 Images
|
